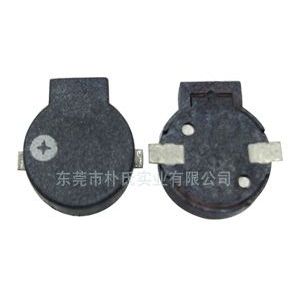

| 加工定制：是 | 品牌：朴氏(PS) | 型号：PS-SBZ9025C27 |
| 是否有源：无源 | 材质：LCP | 规格尺寸(mm)：9(直径)x2.5(高度) |
SPECIFICATIONS
Model NO | PS-SBZ0925C2703RB |
Rated Voltage | 3Vo-p |
Operating Voltage | 2~4Vo-p |
Max.Rated Current | Max.100mA |
Min.Sound Pressure level at 2.7KHz/3Vo-p/10cm | Min.85dB |
Coil Resistance | 16±3Ω |
Resonant Frequency | 2731Hz |
Operating Temperature | -20 ℃~+80 ℃ |
Storage Temperature | -30 ℃~+85 ℃ |
